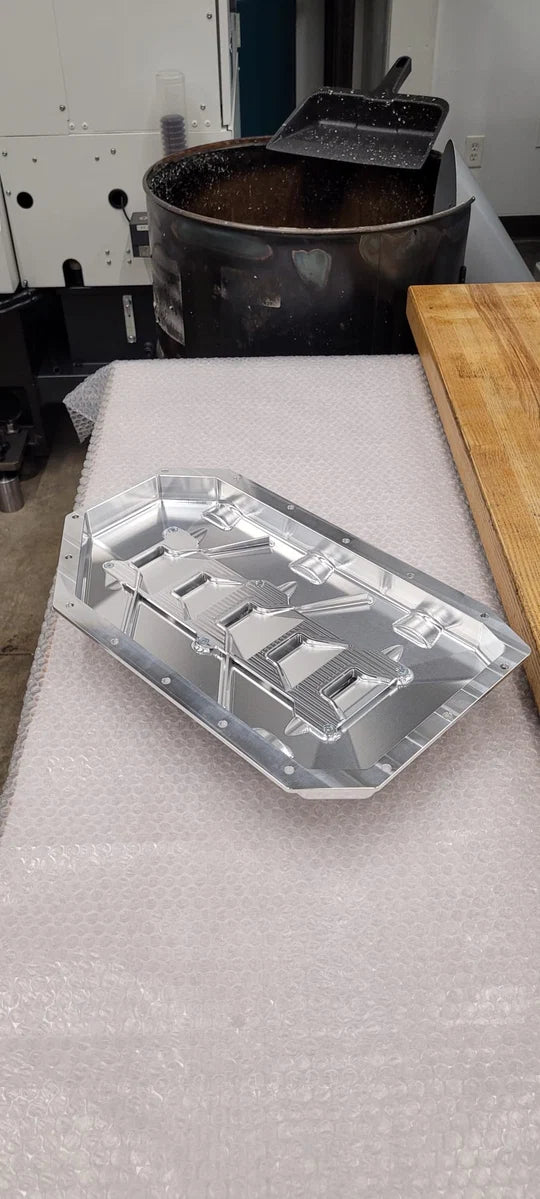

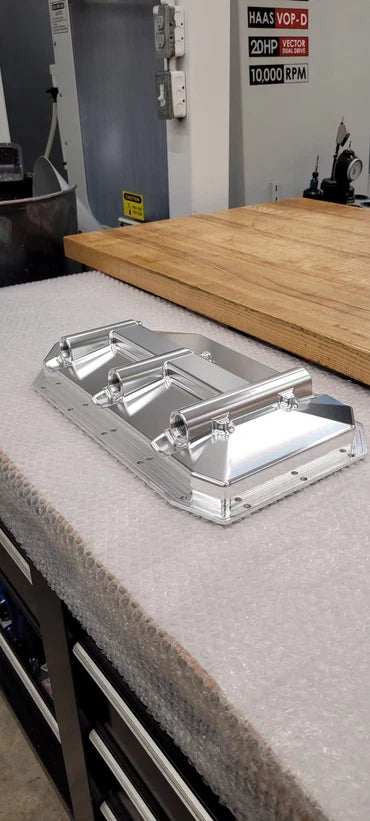

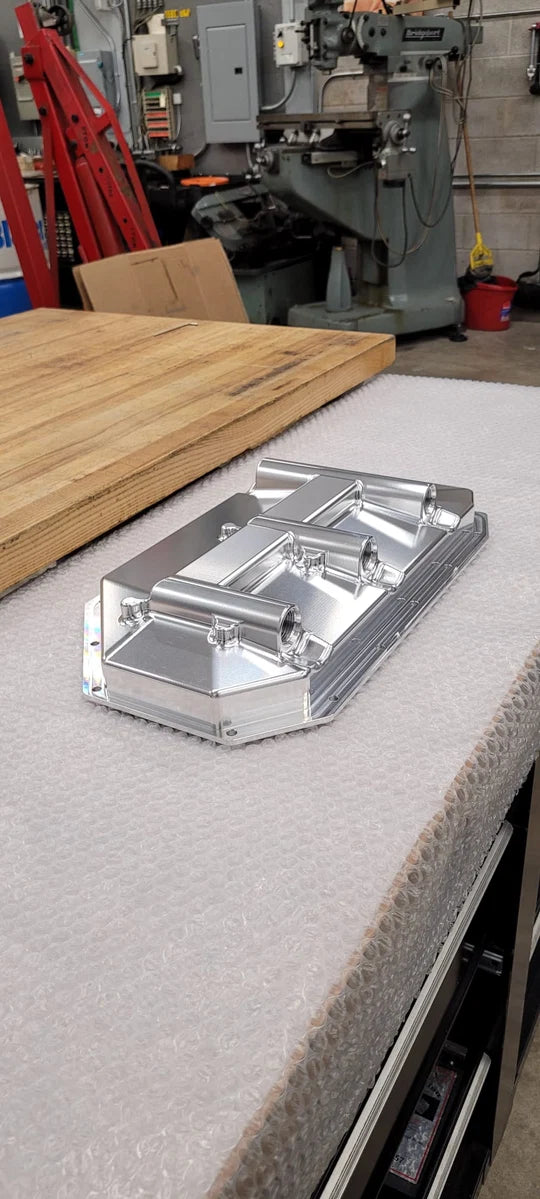

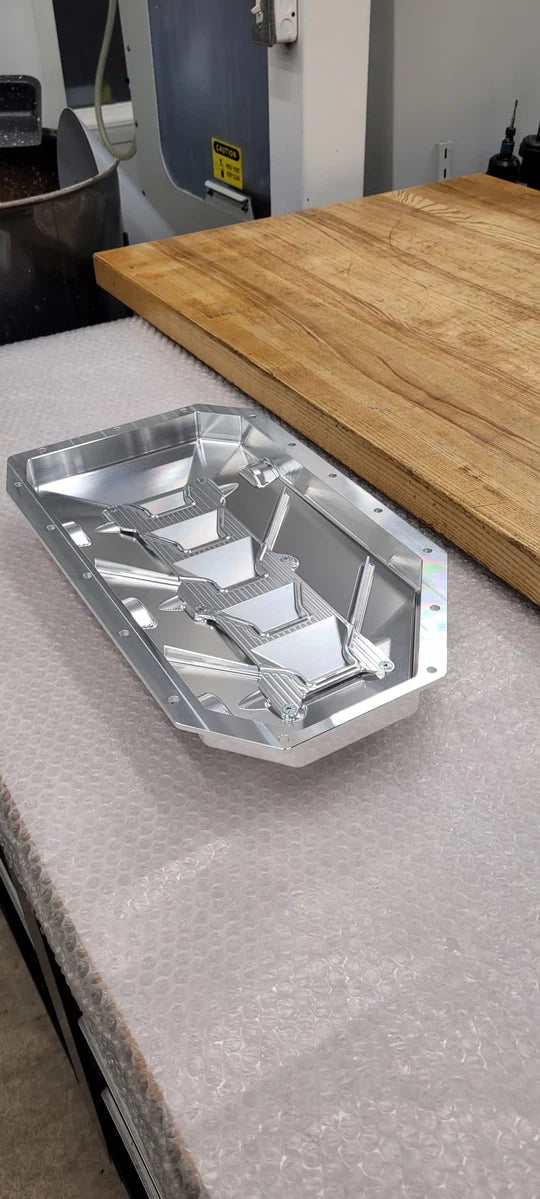

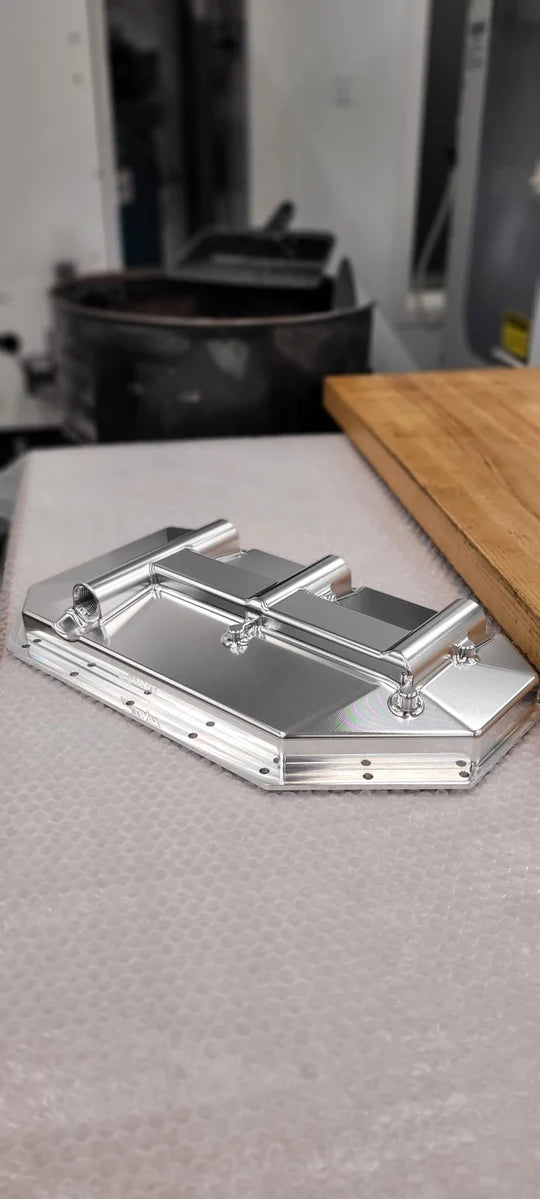

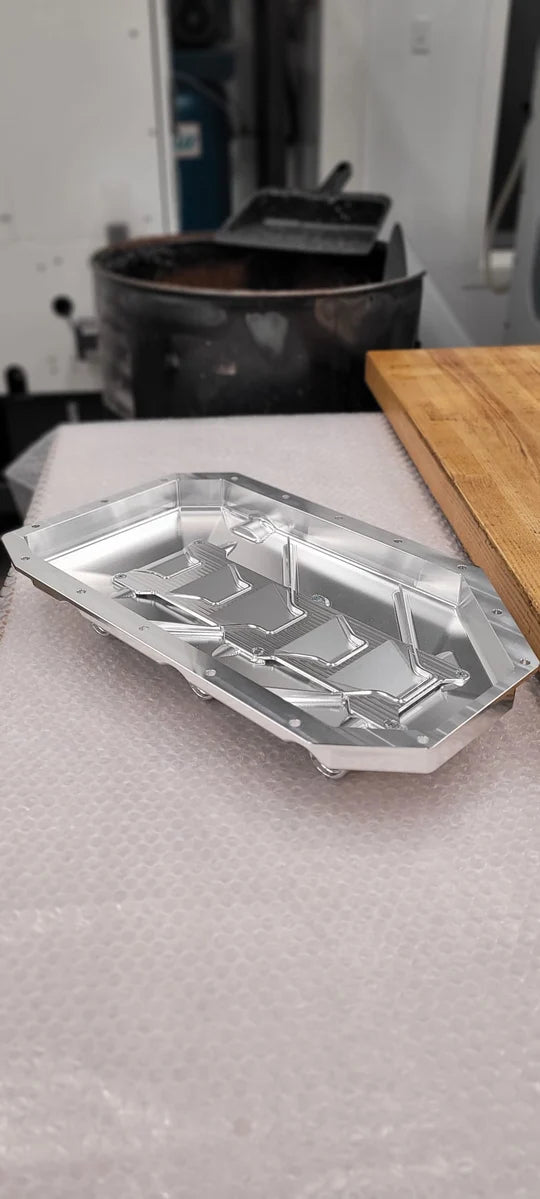

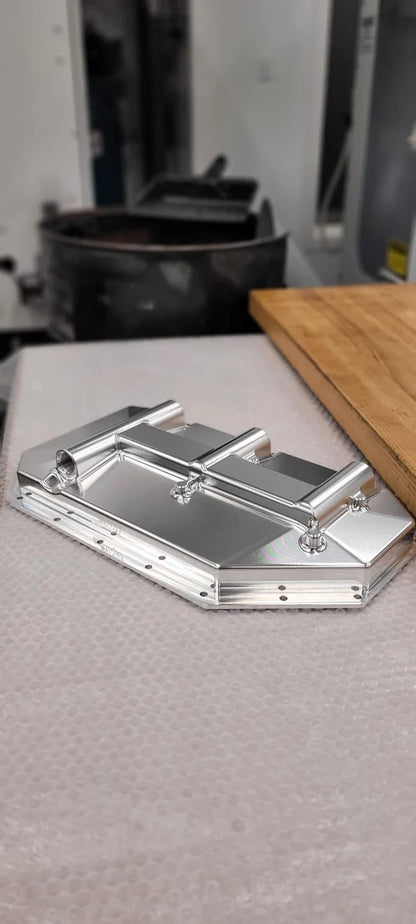

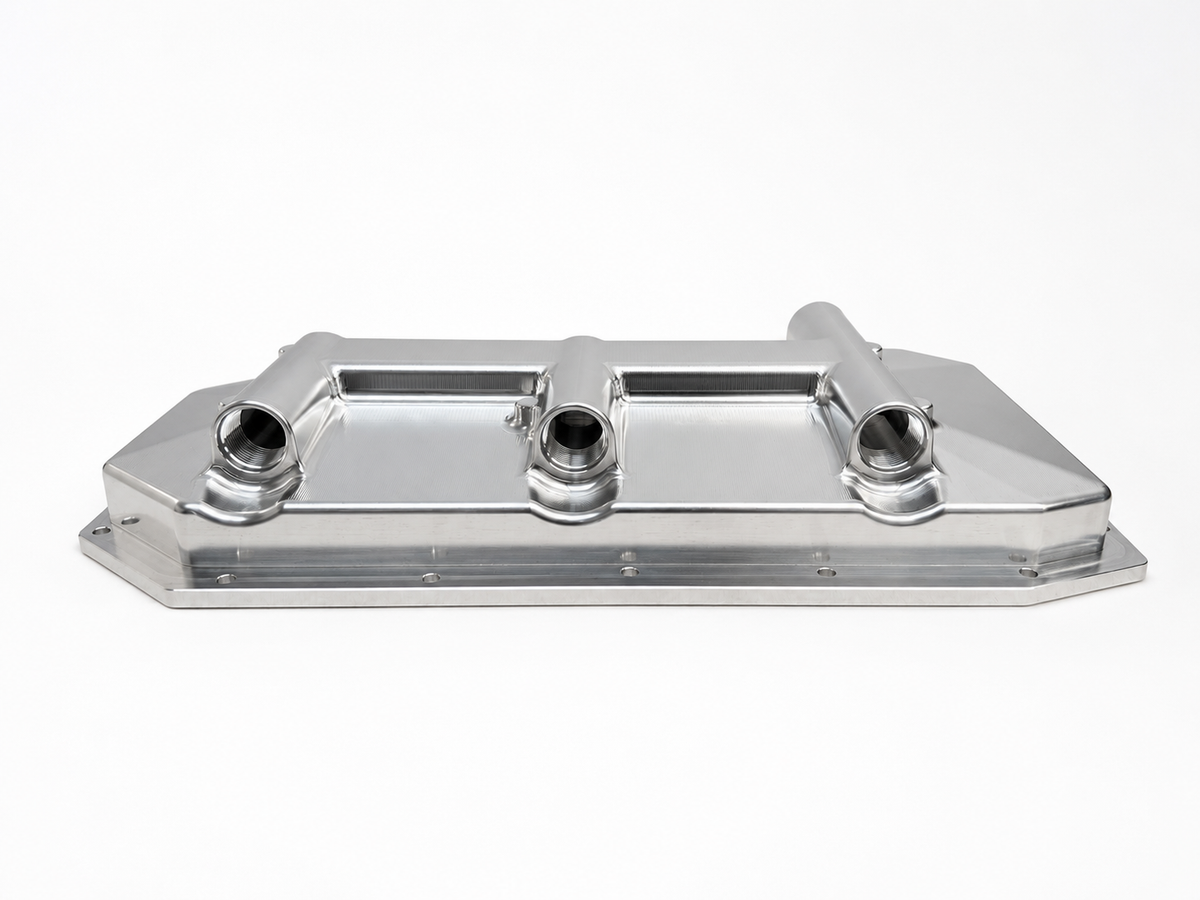

Unit 2 Fabrication K-Series PRO RWD Billet Dry Sump Oil pan

$1,971 CAD

AVAILABLE TO ORDER

-12 ORB scavange filters 3x (+119.97 USD)
Turbo drain fittings (+15.99 USD)

PRODUCT DETAILS

The Unit2 Fabrication Pro Series Billet Oil pan was designed in conjunction with Pimar racing. This pan has provided them with an optimal pan setup enabling their 5 Second 1/4 Mile runs.

This pan can be utilized in any longitudinally mounted RWD K-series car. It has been proven effective on countless RWD Pro Cars. The internal guarded sump aids in reducing oil aeration and the integral baffling design aids in ensuring all oil is efficiently scavenged back into the reservoir.

Port Specifications:

  • 3x -12 Orb Scavenge ports (Intake Side)
  • 1x -12 Turbo Drain (Exhaust Side)

Manufacturing:

This pan is machined from solid 6061-T6 Billet. The internal baffle and sump cover is also machined out of 6061-T6 for a precise fit ensuring seemless internal surfaces.

Notes:

The pan comes complete with the internal baffle installed. Mounting fasteners for the pan are included as standard.
